Description

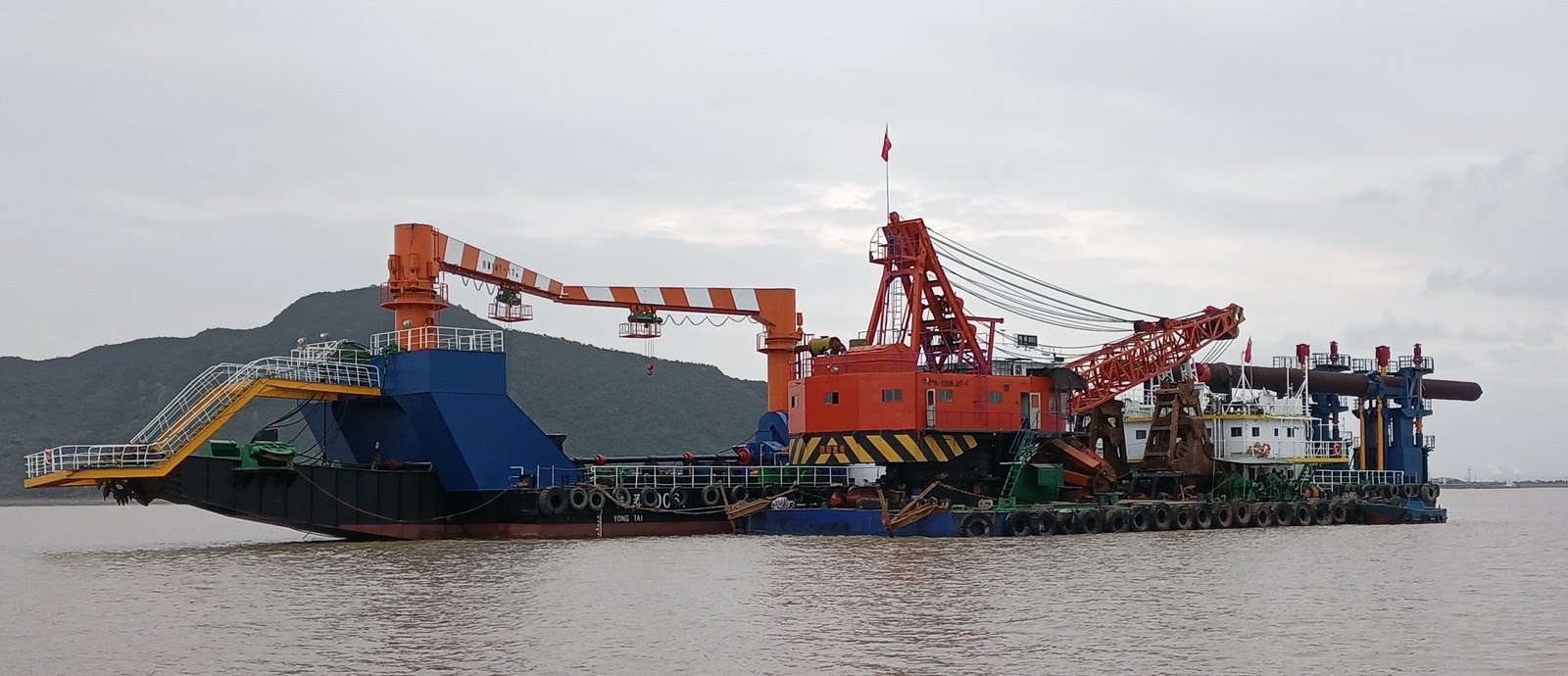

4500 CBM CUTTER SUCTION DREDGER[SH – YT0061]

BUILT IN 2009, KOREA

NON-IACS CLASS

CHINESE FLAG

GRT/NRT 2,484/745

LOA/BREADTH/DEPTH 106.65/18.75/5.0M

WORKING CONDITION

DREDGING CAPACITY (23%) 4,500 CBM/H

DISCHARGE CAPACITY 15,000~18,000 CBM/H

DREDGER DEPTH 26.7 M/45°

DISCHARGE DISTANCE  6~8 KM

MAIN ENGINE

NIIGATA 18V32CXL / 8,738 PS / 600 RPM

MAIN GEN

MITSUBISHI 18KU30A / 8,000 PS / 5650 KW

INBOARD DREDGING PUMP(1)

DOUBLE CASING / 360 RPM

CAPACITY & TOTAL HEAD 18,000 CBM/H * 75M

UNDER-WATER DREDGING PUMP(1)

SINGLE CASING/280 RPM

CAPACITY & TOTAL HEAD 18,000 CBM/H * 35M

DRIVEN BY ELEC. MOTOR 2,500 KW

CUTTER

DIAMETER & HEIGHT 3.1M & 2.3M

RPM 0~30(VARIABLE )

DRIVEN BY DC MOTOR 1,600KW

LADDER WINCH DRIVEN BY DC MOTOR 300 KW/80 T

SWING WINCH HYD. 65 T

CUTTER

WINGS/ TEETHS 6 EA / 48EA

MAKER NIIGATA SECTION

MODEL  18V32CXL

LADDER WINCH DC MOT/300KW/80T

MAIN ENGINE

OUTPUT : NIGATA: 8738 PS / 600 RPM

LADDER

MOVING EQPT. SPUD DIM. 1600 MM X 42 M

INSPECTABLE IN NORTH CHINA

WOG / SUBJECT TO AVAILABILITY

FURTHER DETAILS TO NAMED INTEREST ONLY
