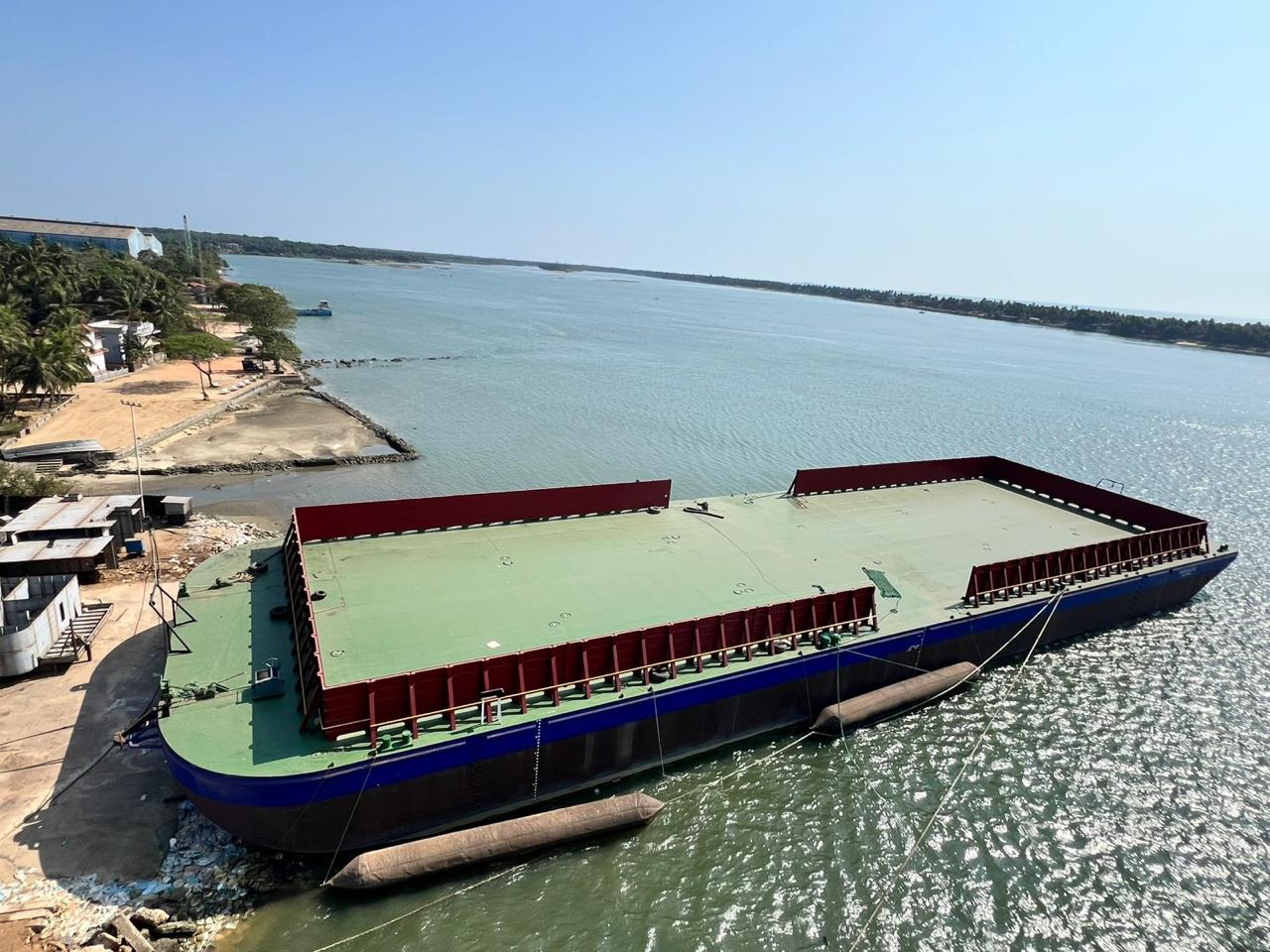

FLAT TOP BARGE - NON-PROPELLED, NON-DP

1. LENGTH - 95M

2. WIDTH - 28.06M

3. DECK STRENGTH - 15 TONS/M²

4. DEPTH MOULDED - 6.10M

5. DRAFT LOADED - 4.5M

6. DWT - 9000 TONS (APPROX)

7. CLASS - ABS

8. STEEL - ABS GRADE A

9. PLATING: DECK - 14MM, BOTTOM - 14MM, SIDES - 12MM, LONGI/TRANS BHD - 9MM

10. DECK FITTINGS:

- MOORING BOLLARDS - 8 NOS DOUBLE BOLLARDS (SWL 15 TON)

- TOWING BRACKETS - 4 NOS SMITH BRACKET (SWL 85 TON)

- ANCHOR WINCH - HAND OPERATED (SWL 10 TONS)

- ANCHOR - 1 NO 1590 STOCKLESS BOWER

11. PAINTING

- ALL PLATES, I-BEAMS, ANGLES BLASTED TO SA2.5 AND PRIMED BEFORE FABRICATION

- VOID TANKS (24 NOS) - 1 YEAR ANTI RUST GUARANTEE

- UNDERWATER AREAS - 3 YEARS ANTIFOULING GUARANTEE

- AKZO NOBEL INTERNATIONAL

- ANODES - 50 ALUMINUM ANODES

13. YEAR OF BUILD – 2026, INDIA

ALL THE TANKS ARE VOID TANKS, BUT IF THE INTERESTED PARTY WANTS THE TANKS TO BE BALLASTABLE, WE ARE READY TO CONVERT THE TANKS AS WELL

WOG / SUBJECT TO AVAILABILITY

FURTHER DETAILS TO NAMED INTEREST ONLY
