Description

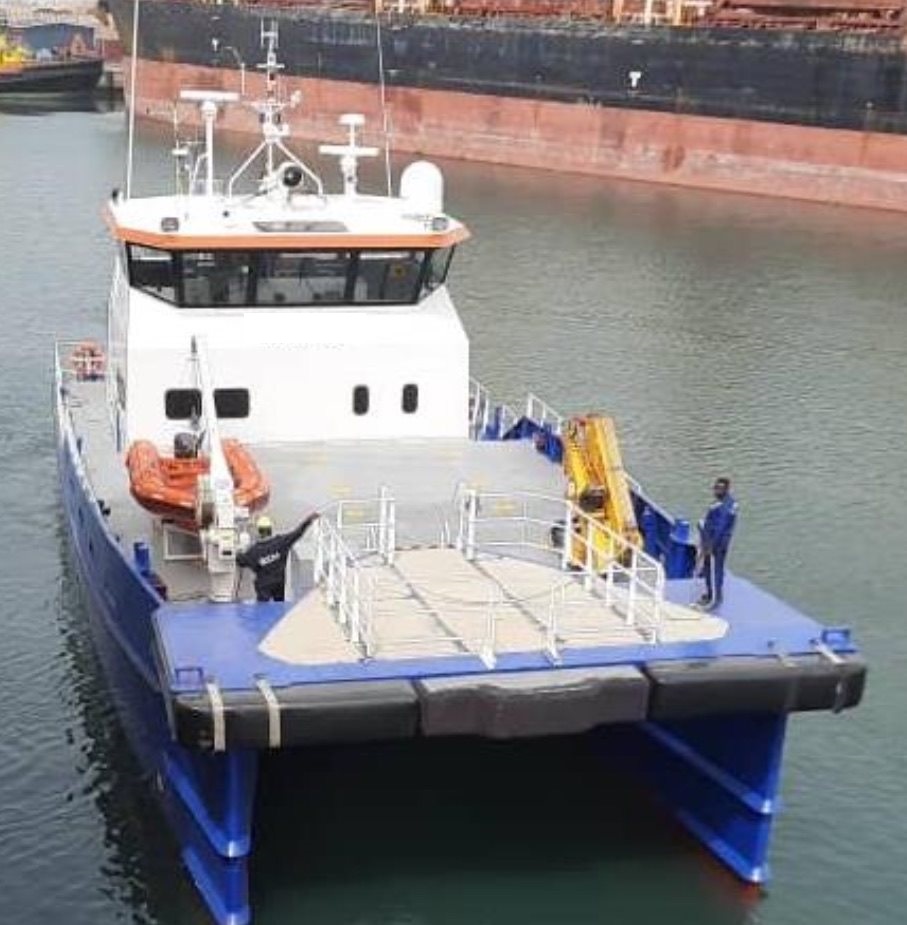

25.6M MULTI-PURPOSE CREW / DIVE SUPPORT VESSEL
DESCRIPTION | MULTIPURPOSE CREW / SURVEY / DIVE SUPPORT VESSEL |
DATE LAUNCHED | 2012 |
LENGTH | 25.60M (83FT 11.8IN) |
BEAM | 10.27M (33FT 8.3IN) |
DRAFT | 2.90M (9FT 6.1IN) |
NOTE | MAIN ENGINES: 2 X CATERPILLAR C32 TTA |
LOCATION | TEMA PORT, GHANA |
GENERAL INFORMATION
TYPE: MULTIPURPOSE CREW / SURVEY / DIVE SUPPORT VESSEL
BUILT: NOVEMBER 2012 CONSTRUCTION
HULL MATERIAL: ALUMINIUM
SUPERSTRUCTURE MATERIAL: ALUMINIUM DIMENSIONS
LENGTH OVERALL: 25.60M
BEAM: 10.27M
DEPTH: 2.90M
DRAFT: 2.20M
PROPULSION & MACHINERY
PROPULSION: TWO FIXED PITCH PROPELLERS
MAIN ENGINES: 2 X CATERPILLAR C32 TTA
TOTAL OUTPUT: 2,400 BHP
GEARBOXES: 2 X REINTJES ZWVS SERIES (TWO SPEED)
PERFORMANCE
MAXIMUM SPEED: 25.1 KNOTS
MAXIMUM RANGE: 700 NAUTICAL MILES AT MAXIMUM SPEED
DECK DETAILS
FREE DECK AREA: 90 M²
DECK CAPACITY: 15 TONS
DECK STRENGTH: 1.5 TONS/M²
DECK EQUIPMENT
RUBBER “D” FENDERING
HEAVY DUTY FOAM-FILLED BOW FENDER
HEILA HLM 20-2S DECK CRANE
ELECTRICALLY OPERATED DIVING PLATFORM AT STERN
TWO ADDITIONAL ANCHORS WITH WINCH (THREE-POINT MOORING)
MOONPOOL FOR SURVEY DUTIES
POWER GENERATION & THRUSTERS
GENERATOR SETS: 2 X 22.5 KW / 28 KVA
BOW THRUSTERS: 2 X 50 KW HYDRAULICALLY DRIVEN
TANK CAPACITIES
FUEL OIL: 14.2 M³
FUEL OIL TRIM TANK: 8.0 M³
FRESH WATER: 1.8 M³
WASTEWATER: 0.5 M³
ACCOMMODATION
ACCOMMODATION FOR 24 DAY PASSENGERS AND 3 CREW, INCLUDING:
CREW CABIN
CAPTAIN’S CABIN
PANTRY
DAYROOM
TOILET FACILITIES
AIR CONDITIONING
NAVIGATION & COMMUNICATION EQUIPMENT
FITTED IN ACCORDANCE WITH CLASS REGULATIONS.
CLASS & SURVEY STATUS
CLASS: BUREAU VERITAS (BV) I ✠ HULL MACH, SPECIAL SURVEY DUE: AUGUST 2027 LATEST DRY DOCKING: 2022
REMARKS
THE VESSEL HAS BEEN COMPLETELY UPGRADED AND SERVICED, AND IS SUITABLE FOR CREW TRANSFER, SURVEY OPERATIONS, DIVE SUPPORT, OFFSHORE SUPPORT, AND MULTIPURPOSE MARINE OPERATIONS.
WOG / SUBJECT TO AVAILABILITY
FURTHER DETAILS TO NAMED INTEREST ONLY
