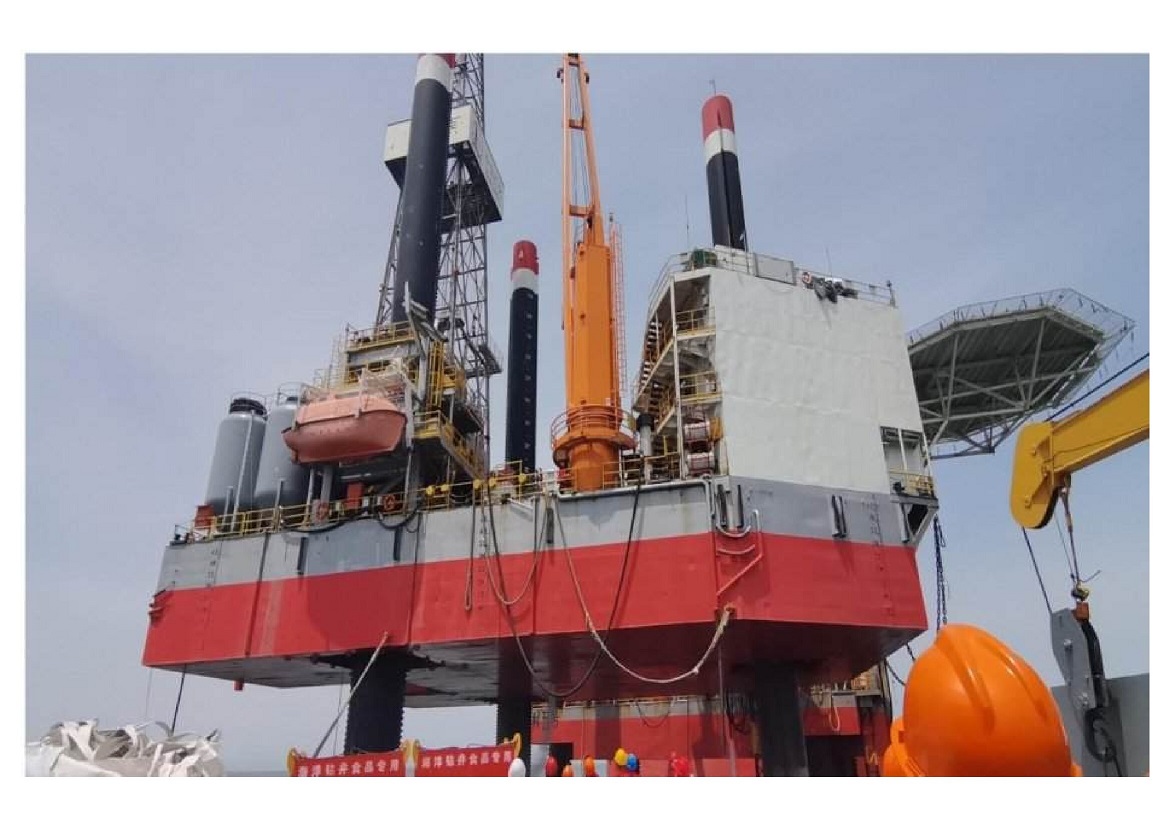

70M SELF-ELEVATING DRILLING RIG FOR SALE

• THREE-PILE SELF-ELEVATING MOBILE DRILLING PLATFORM
• BUILT IN FRANCE IN 1980 AND IMPORTED FROM SINGAPORE TO CHINA IN 1997
• REPAIRED AND MODIFIED AT YANTAI SHIPYARD BEFORE ENTERING SERVICE.
• MAJOR EQUIPMENT WAS UPGRADED IN 2009, 2012, 2015, 2022, AND AGAIN IN JULY 2024.
• CURRENTLY IDLE AT THE CB12A WELL GROUP OF CHENGDAO OILFIELD BUT IS MAINTAINED AND CAN RETURN TO DRILLING AFTER RESTORATION AND OUTFITTING.
• OVERALL LENGTH: 59.95 M.
• OVERALL WIDTH INCLUDING LIFEBOATS: 37.7 M.
• MOLDED BREADTH: 32.3 M, MOLDED DEPTH: 5.2 M.
• IT HAS 3 PILE LEGS, EACH 3 M IN DIAMETER AND 70 M LONG.
• MAXIMUM OPERATING WATER DEPTH: 30 M.

• MAXIMUM WAVE HEIGHT: 5.3 M FOR DRILLING OPERATIONS AND 6.3 M FOR SELF-STORAGE CONDITION.
• MAXIMUM WIND SPEED: 36 M/S FOR OPERATIONS AND 51.5 M/S FOR SELF-STORAGE.
• NORMAL LIFTING LOAD: 3,150 TONS; NORMAL SUPPORT LOAD: 4,500 TONS.
• INCLUDES A CABIN/LAYOUT DIAGRAM SHOWING KEY SPACES SUCH AS BALLAST TANKS, FUEL TANK, FRESHWATER TANK, MUD PUMPS, MUD SUMP, LIVING SPACES, POWER ROOM, AND EMERGENCY GENERATOR ROOM.
• IT ALSO LISTS RESERVE VOLUMES FOR DRILLING WATER, FRESH WATER, DIESEL OIL, LUBE OIL, ASH CAN, BARITE, MUD SUMP, BAGGED PRODUCT, AND BERTH-RELATED STORAGE.
• THE PLATFORM HAS A FULL SET OF CERTIFICATES THAT CAN BE RESTORED AND ACTIVATED.

• KEY CERTIFICATES INCLUDE NATIONALITY CERTIFICATE, OWNERSHIP CERTIFICATE, SECURITY CERTIFICATE, QUALIFICATION CERTIFICATE, LOAD LINE CERTIFICATE, OIL POLLUTION PREVENTION CERTIFICATE, WASTEWATER POLLUTION CERTIFICATE, AND AIR POLLUTION CERTIFICATE.
• SEVERAL CERTIFICATES ARE VALID THROUGH 2027 OR 2028.
• DRILLING WINCH: JC-50D, WITH 5,000 M DRILLING DEPTH CAPACITY AND 1,100 KW INPUT POWER.

• MUD PUMP: 3NB-1600F, RATED POWER 1,193 KW AND MAXIMUM PRESSURE 35 MPA.
• TOP DRIVE: DQ70III-A, RATED LOAD CAPACITY 4,500 KN.
• CRANE: TC-450, MAXIMUM HOOK LOAD 4,500 KN.
• FOUR DIESEL GENERATORS: CAT3512BSR4B, EACH RATED AT 1,200 KW.

LOCATION - CHINA

WOG / SUBJECT TO AVAILABILITY

FURTHER DETAILS TO NAMED INTEREST ONLY
