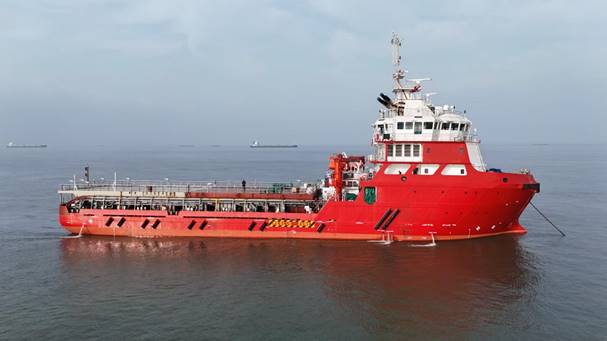

95 TBP AHTS NB DİESEL ELECTRİC FOR FOR SALE
- 95 TBP AHTS
- DİESEL ELECTRİC - 7200 KW
- DP-2 & FİFİ-1
- 480 M2 DECK
- DELİVERY FEB 2027 – NB CURRENTLY UNDER CONSTRUCTİON
CLASS | ABS |
CLASS NOTATION | ABS +A1 OFFSHORE SUPPORT VESSEL (AH, TOW, SUPPLY- CHEM,OSR-C2, FFV-1), SPS, CIRCLE E,+AMS, +ACCU, QR, +DPS-2, UWLD, MLC-ACCOM(SPS), BWT, IHM, SMART(INF,MHM TIER1), CR,RWI,BP(95),IP |
LOA/B/D | 70 MT / 16 MT / 6.8 MT |
DWT | 1,940 AT DESIGN DRAFT 5.2 M |
BOLLARD PULL | 95 TBP |
|
|
FREE DECK SPACE | 480 M2 |
DECK CAPACITY | 600 T |
DECK STRENGTH | 7.5 T/M2 |
|
|
DRY BULK | 170 M3 (4 X 42.5M3) |
LIQUID MUD/BRINE | 400 M3 |
|
|
MAIN AZIMUTH THRUSTER | ELECTRIC MOTOR DRIVEN / WARTSILA / 2 X 2,800KW |
MAIN GENERATOR | CUMMINS(UK)+LEROY SOMER/ 4 X 1,800KW |
EMERGENCY GENERATOR | CUMMINS+LEROY SOMER/ 1 X 240KW |
BOW THRUSTER | ELECTRIC MOTOR DRIVEN / WARTSILA / 2 X 10.4T/700KW |
SPEED | 12.5 KN |
COMPLEMENT | 60 MEN (SPS CODE) |
DELİVERY FEB 2027 - N/B CURRENTLY UNDER CONSTRUCTİON
DELİVERY İN FAR EAST
WOG / SUBJECT TO AVAILABILITY
FURTHER DETAILS TO NAMED INTEREST ONLY
