Description

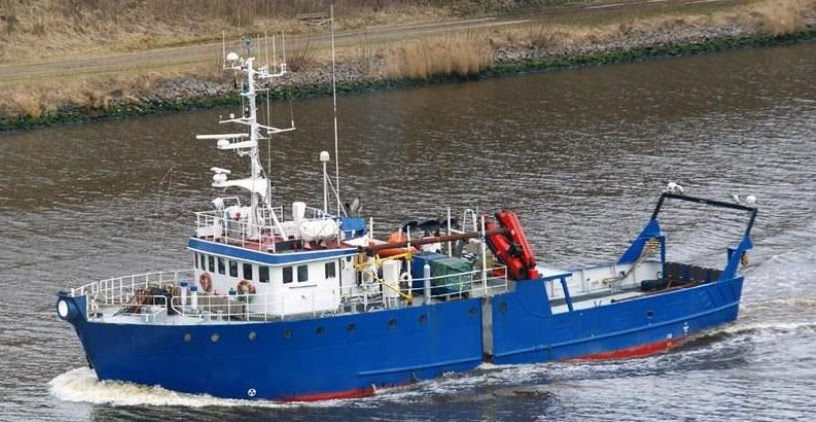

MS MADOG – WORKBOAT FOR SURVEY & RESEARCH FOR SALE

BASED IN DENMARK AT PRESENT THIS VESSEL HAS BEEN UPGRADED AND CONVERTED OVER THE YEARS TO ALLOW HER TO UNDERTAKE A VARIETY OF ROLES INCLUDING ROV WORKS. VESSEL REPORTED IN VERY GOOD CONDITION AND FULLY OPERATIONAL.

TYPE: STEEL RESEARCH & SURVEY VESSEL
BUILT: BY RAMSEY SHIP BUILDING CO., UK – CONVERTED FOR ROV OPERATIONS
CLASSIFICATION: ISR – GMDSS A2 – CERTIFIED FOR 12 PERSONS
DIMENSIONS: LOA: 29.65 M W: 7.00 M D: DRAFT 3.20 M TO 3.80 M
TONNAGE: 185 GT – 55 NT
ENGINE ROOM: 442 KW LISTER BLACKSTONE,

LOW SPEED MAIN ENGINE

– 4 BLADE PITCH PROPELLER

– 1 X DEUTZ AUXILIARY 200 KW ENGINE + HYDRAULIC PUMP 130 L/MIN. 240 BAR

– 1 X MWM 35 KW 220 V / 380 V AUXILIARY ENGINE

– 1 X PERKINS 120 KW 220 V / 380 V AUXILIARY ENGINE

– 1 X BACK-UP HYDRAULIC STATION 70 I./MIN. 200 BAR

– 1 X BACK-UP HYDRAULIC PUMP ON MAIN ENGINE 60 L/MIN. 180 BAR

CRUISING SPEED: 10 KNOTS

THRUSTERS: 1 X 64 KW BOW THRUSTER
CARGO CAPACITY: 10 CBM CARGO HOLD
DECK EQUIPMENT: 1 X 66 M2 FREE AFT DECK – 1 X 1000 KG A-FRAME

– 2 X 9 M OUTRIGGER BOOMS – 2 X 2 HYDRAULIC SPLIT

-WINCHES RIGGED FOR 4-POINT MOORING

– 1 X 33-TON FASSI CRANE REMOTE CONTROLLED WITH CABLE WINCH RIGGED WITH 100 M CARBON FIBER WIRE SWL 12 TON, LIFTING HEIGHT 17 M ABOVE SEA LEVEL,

– 3/4″ HYDRAULIC SNAP CONNECTION FOR UNDERWATER TOOLS ON DECK.

LOCATION: DENMARK

WOG/ SUBJECT TO AVAILABILITY

FURTHER DETAILS TO NAMED INTEREST ONLY
