Description

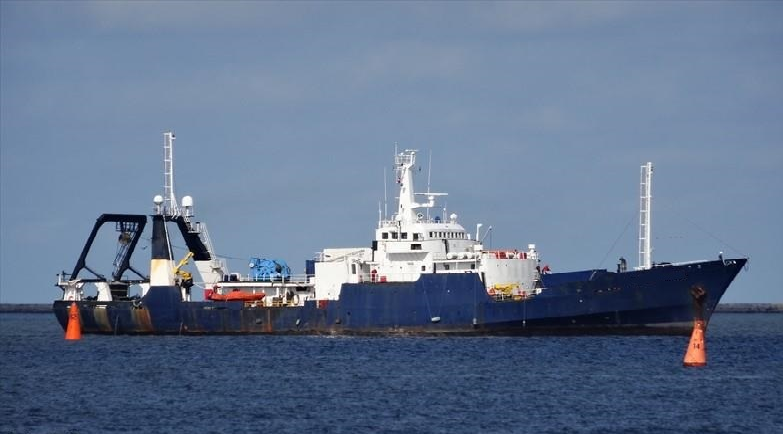

ROV SUPPORT, SURVEY & EXPEDITION VESSEL WITH DP2 & A-FRAME
A VESSEL FOR SALE WITH ROV SUPPORT WITH DP2, AB+100 A1(ICE CLASS) ORIGINALLY BUILT AS A FACTORY TRAWLER, BUT WITH SUBSTANTIAL REBUILD IN 1994 SHE WORKED AS A MINE SWEEPER IN THE UK FALKLAND CAMPAIGN. TODAY SHE IS PROVIDING COMPREHENSIVE RESOURCES AND FACILITIES FOR THE SUPPORT OF MODERN MARINE SCIENCE. SHE IS FULLY DESIGNED AND EQUIPPED FOR 2 ROVS AND HAS A UNIQUE DEEPSEA EXCAVATOR FOR VARIOUS SALVAGE OPERATIONS, BOULDER REMOVALS, ETC.
IN 2021 ALL ENGINES AND GENERATORS (9 IN TOTAL) WERE REBUILT, DECK AND OTHER REPAIRS UNDERTAKEN. THE SHIP IS IN PERFECT CONDITION AND READY TO GO. BUT AT PRESENT ALL CERTIFICATES HAVE EXPIRED AND THE VESSEL IS LAID UP WITH A TEAM FOR MAINTAINING HER IN GOOD CONDITION.
OPTIONALLY, THE ROVS THAT ARE ON BOARD CAN ALSO BE PURCHASED.
CLASSIFICATION I.N.S.B.NORDIC, AB+100 A1
PORT OF REGISTRY PANAMA
BREADTH 12.65 M
DEPTH 5.74 M
DRAFT 6.7 M (INCL.AQUAMASTERS)
SPEED MAX 12 KNOTS, SERVICE 10 KNOTS
RANGE 16,000 NM
DURATION 60 DAYS
GROSS TONNAGE 1431 T
NET TONNAGE 504 T
DISPLACEMENT 2220 TONNES
FUEL CAPACITY 283 TONNES
F.W. CAPACITY 100 TONNES
ACCOMMODATION 42 PERSONS
CREW 12/15
YEAR BUILT 1972 (REBUILT 1994, 2020)
BUILDER CLELANDS
CONSUMPTION TRANSIT/DP
4.5 T/24 H – 2.5-3.5 T/24 H
MAIN ENGINE: MIRRLESS MAJOR KMR 6 CYL, 4-STROKE DIESEL, 2782 BHP @ 525 RPM.
SINGLE SHAFT DRIVEN THROUGH REVERSE-REDUCTION GEAR BOX
MAIN PROPULSION: LIAAEN TYPE G80/0 4-BLADED STAINLESS STEEL C.P. PROPELLER
AUXILIARY PROPULSION:
NO 1: FORWARD RETRACTABLE AZIMUTH AQUAMASTER UL632, 102 KN,
NO 2: FORWARD TUNNEL KAMEWA 1300, 60 KN,
NO 3: AFT TUNNEL KAMEWA 1100, 45 KN,
NO 4: AFT RETRACTABLE AZIUMUTH AQUAMASTER 601, 84 KN
CONTROL SYSTEM ALSTOM DP DUPLEX CONTROL CONSOLE FOR BRIDGE OPERATIONS
GENERATORS 2 X 220 KW, 2 X 475 KW
ALTERNATORS 1 X SHAFT DRIVEN 300 KW
DC GENERATOR 1 X INDEPENDENT 220 KW
DC GENERATOR 2 X 187 KW ALTERNATOR
POWER SUPPLIES MAIN POWER GENERATION @ 440V, 3 PHASE, 50 HZ
DOMESTIC POWER 220V, 1 PHASE, 50 HZ
SCIENTIFIC POWER SUPPLIES AVAILABLE AT VARIOUS VOLTAGES. ROV POWER 440V, 60 HZ
AUXILIARIES 5 TONNE/DAY REVERSE OSMOSIS F.W PLANT, AIR CONDITIONING PLANT
LABORATORIES: ONLINE & OFFLINE SURVEY LABORATORIES, ROV CONTROL ROOM
DATA LOGGING, STORAGE, REPORTS, GRAPHICS, AIS DATABASE
HANDLING FACILITIES: CRANES 2 X 1.5- TON SWL
KNUCKLE BOOM @ 6 METERS 1 X 9T SWL
KNUCKLE BOOM. L/R FOR ROV 1 X 5-TON SWL (DESIGNED TO 20- TON SWL)
“A” FRAME AT STERN MOONPOOL 5.3M X 3.5M COMPLETE WITH HANGAR, OPTIONAL A FRAME FOR ROV
NAVIGATION OUTFIT: 1 X RADAR FURUNO
2835S ARPA 1 X RADAR FURUNO
FR2115 + ARP 2 X SPERRY GYROS
SR220, DECCA 550 AUTO PILOT, CETREK
930-747 AUTO PILOT, FURUNO GP50 GPS,
DESO 30 ECHO SOUNDER
SPEED LOG, FURUNO WEATHERFAX, MARCONI NAVTEX
COMMUNICATIONS GMDSS TO AREA 3
2 X SAT C NAVICO VHF RT 6500S, 2 X SKANTI VHF DSC TRANSCEIVER TRP
3024, SKANTI MF/HF DSC CONTROLLER
DCU 9006, SKANTI MF/HF DSC
TRANSCEVIER DCU 9006 SKANTI HF
SSB TRP 8000. 3 X HANDHELD VHF ICOM ICM 12,
ELECTRONAV EN2182R WATCH ALARM SERPE-IESM RESCUER,
EPIRB JOTRON TRON40S, SKANTI INMARSAT B. FLEET 77
KVH MINI VSAT V7, NERA FLEET 77, SAT TV
OPTIONAL ROV BUILDER (RB) MINI 300 EPRONS ROV,
ROGE(ROV) SYSTEM 3000M DEEP, ROV DEMON SYSTEM 3000M
THROUGH HULL DEPLOYMENT HYDRAULICS BEAM MACHINE FOR USBL
REX: THIS UNIQUE DEEP WATER SYSTEM HAS BEEN PURPOSE BUILT TO PROVIDE EFFICIENT DEPLOYMENT,
OPERATION AND RECOVERY OF VARIOUS SUBSEA TOOLS
A HIGH-SPEED WINCH HOLDING 3000 M OF ARMORED UMBILICAL PROVIDES THE LOAD BEARING REX WITH POWER COMMS AND LIFT. THE LOAD BEARING REX HAS MULTIPLE FUNCTIONS AND IS FITTED OUT WITH THE LATEST EQUIPMENT IN SUBSEA NAVIGATION AND SURVEY. THERE IS A RANGE OF VARIOUS APPLICATIONS AVAILABLE FOR HIRE WITH SURVEY EQUIPMENT.
THE REX IS A GENERAL-PURPOSE GRAB THAT CAN BE USED FOR ANY MATERIAL HANDLING OPERATION. THE GRAB HAS BEEN USED FOR WRECK DEMOLITION, BOULDER CLEARANCE AND CARGO RECOVERY OPERATIONS. I.E AT THE HUMBER GATEWAY WINDFARM FOR BOULDER REMOVAL
LOCATION: NORTHERN EUROPE
WOG / SUBJECT TO AVAILABILITY
FURTHER DETAILS TO NAMED INTEREST ONLY
