Description

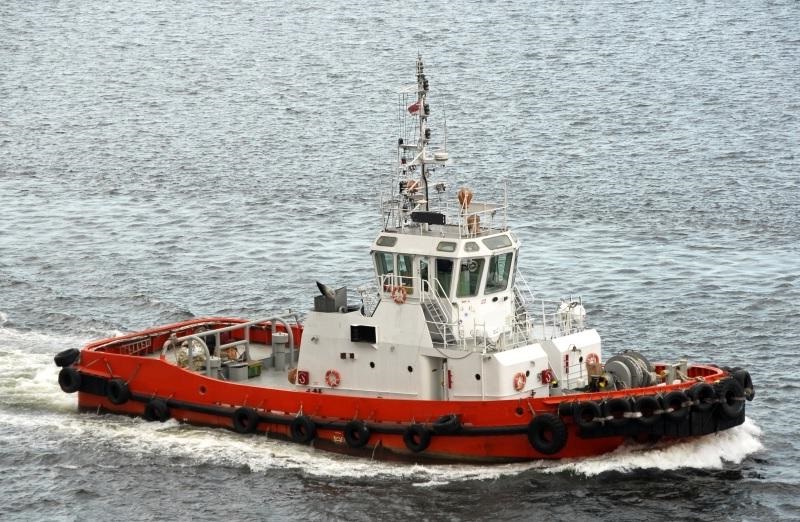

CLASS:                        ABS + A1, AH (E) TOWING VESSEL, (FIRE FIGHTING CAPABILITY) + AMS.
YEAR BUILT:                2012/CHINA
LENGTH OVERALL:       29.36 M
BREADTH MOULDED:    9.80 M
DEPTH MOULDED:        5.00 M
OPERATIONAL DRAFT:  4.10 M
ACCOMMODATION:      10 MEN
BOLLARD PULL:            45 TONS
SPEED:                        12 KNOTS
CAPACITIES
GROSS TONNAGE:        370
NETT TONNAGE:          110
FUEL CAPACITY:          200 CBM
FRESH WATER CAPACITY:    40 CBM
MACHINERY
MAIN ENGINES:             2 X YANMAR 1800BHP EACH @ 900RPM
PROPULSION:                2 X SCHOTTEL SRP 1012FP AZIMUTH FIXED PITCH Z DRIVE
GENERATORS :              2 X 130KW VOLVO PENTA
DECK EQUIPMENT
FWD TOWING WINCH:     3 T @ 40 M/MIN @ FIRST LAYER
BRAKE HOLDING:             80 T @ FIRST LAYER
DRUM CAPACITY:             1 X 12” CIRC X 200 M WORKING TOWING ROPE
AFT TOWING WINCH:       45 T @ 6M/MIN, 13T @ 21M/MIN
BRAKE HOLDING:             100 T @ FIRST LAYER
DRUM CAPACITY:             1 X 600M OF 42MM DIA
TOWING HOOK :              50 T WITH REMOTE PNEUMATIC RELEASE
DECK CRANE:                  1 X SWL 720 KG. OUTREACH: 12M
EXTERNAL FIRE FIGHTING & OIL SPILL EQUIPMENT
FIRE PUMP:                    1 X 1400 M³/HR @120 M HEAD
FIRE MONITORS:            2 X 600M³/HR WITH REMOTE CONTROL
OILY WATER SEPARATOR: 0.5 M³/HR
DISPERSANT SYSTEM:     1 X DISPERSANT PUMP C/W 2 OFF CENTRE THROW NOZZLE

WOG / SUBJECT TO AVAILABILITY

FURTHER DETAILS TO NAMED INTEREST ONLY
