Description

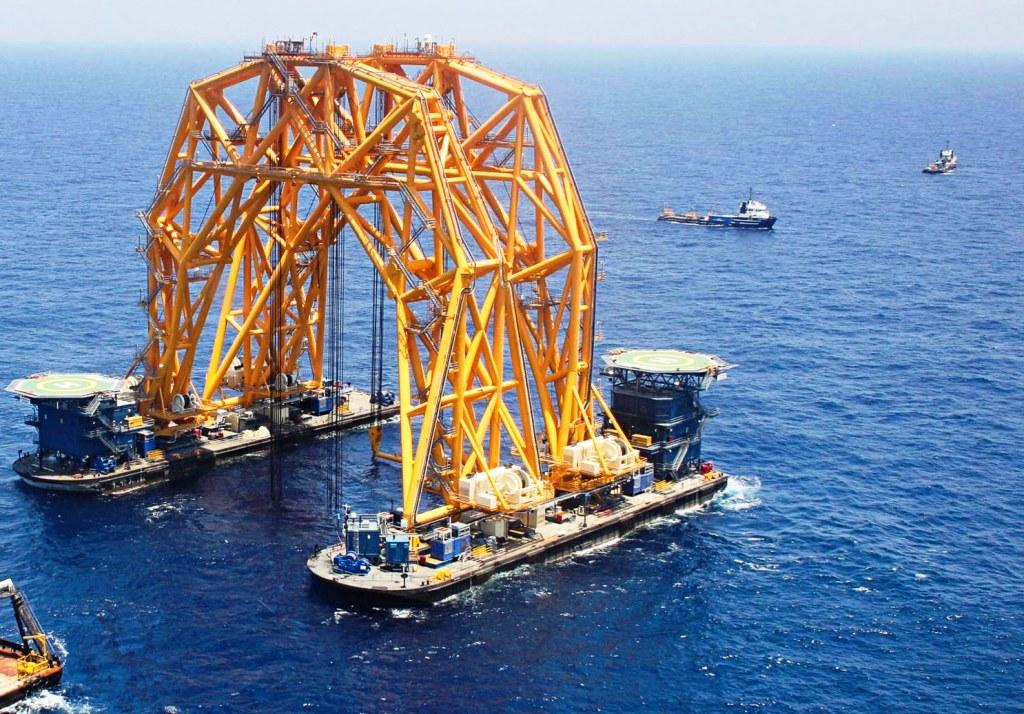

DPS-3, CATAMARAN TYPE, HEAVY LIFT VESSEL
“VB-10,000” – US FLAG, COMMISSIONED IN 2010

CLASSIFICATION:    ABS, +A1, BARGE, HELIDK, +DPS-3

DIMENSIONS:        290 FT – LENGTH OVERALL
                               314 FT – BREADTH
                               20 FT – DEPTH
                               166 FT – DISTANCE BETWEEN BARGES

DRAFTS:     17 FT, 5 INCHES – HEAVY LIFT
                   12 FT, 6 INCHES – LIGHT SHIP
                   15 FT, 8 INCHES – TRANSIT UNDER LOAD

DP:            DPS-3 CLASSED
                  KONGSBERG K-POS 21 DP-21
                  C-JOY INDEPENDENT JOY STICK
                  HEAVY LIFT MODE
                  EIGHT (8) X 1,000 HP RETRACTABLE AZIMUTHING THRUSTERS

GENERATORS:        MAIN – FOUR (4) X 99 KW
                               BACK-UP – TWO (2) X 25 KW E-GEN

LIFTING CAPACITY:  MAXIMUM HEAVY LIFT 7,500 SHORT TONS
                  MAXIMUM TRANSIT LOAD 4,500 SHORT TONS
                  MAIN HOISTS FOUR 400-TON HYDRAULIC
                  MAIN HOIST WIRE 7,500 FT 3.5-INCH – EEIPS (EACH WINCH)
                  MAIN BLOCK INDIVIDUAL CAPACITIES 2,000 TONS (EACH)
                  AUXILIARY BLOCKS INDIVIDUAL CAPACITIES 500 TONS (EACH)
                  ALL BLOCKS (MAIN & AUX.) ARE SUBMERSIBLE
LOCATION – US GULF , GOM

WOG / SUBJECT TO AVAILABILITY

FURTHER DETAILS TO NAMED INTEREST ONLY
