Description

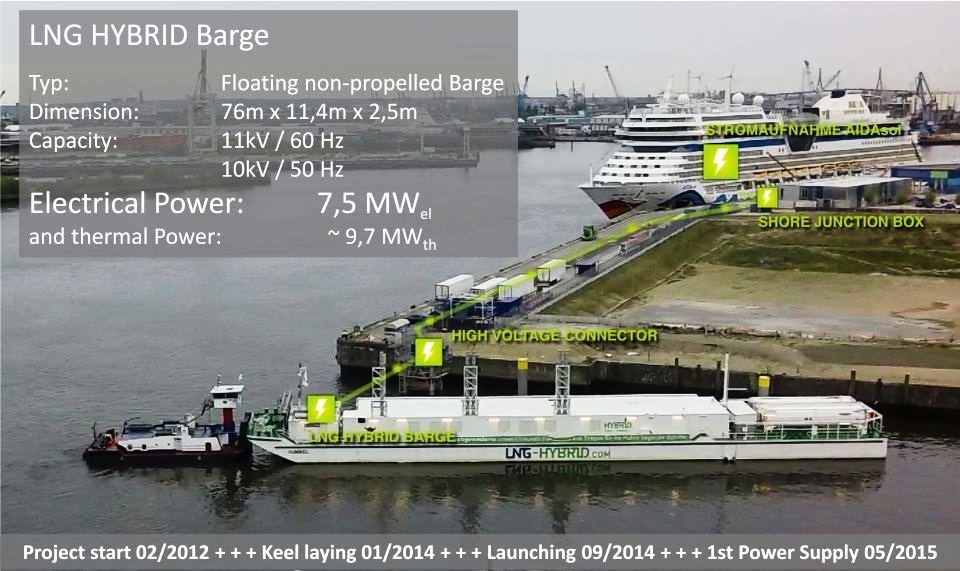

BARGE HUMMEL
2014 BUILT LNG HYBRID POWER
THE POWER BARGE WAS ORIGINALLY DEVELOPED TO ENABLE VISITING CRUISE VESSELS TO POWER DOWN MAIN ENGINES IN PORT, REDUCING FUEL USE AND POLLUTION, WHILST RETAINING FULL ELECTRICAL POWER TO ON BOARD SYSTEMS. THE BARGE IS CAPABLE OF GENERATING A TOTAL OF 7.5 MW OF POWER FROM 5 SILENT GENERATORS WHEN CONNECTED TO A LOCAL GAS SUPPLY. THE SYSTEM CAN ALSO USE RENTED LNG TANKS ON BOARD.
IT CAN ACT AS A BACKUP POWER BANK TO THE LOCAL ELECTRIC AND POWER GRID, ALSO POTENTIALLY PROVIDING LARGE AMOUNTS OF HEATED WATER TO LOCAL SYSTEMS AND WOULD BE EFFECTIVE FOR CRITICAL POWER INFRASTRUCTURE.
MAIN DETAILS:
|
POWER BARGE HUMMEL |
|
| PONTOON BUILT | 2014, SLOVAKIA |
| CLASS | BV BARGE SPECIAL SERVICE |
| PONTOON DIMENSIONS | 76.7 X 11.9 X 4M |
| GAS ENGINES | CATERPILLAR G 3516 C
RATING 1,622 KW (MECH) / 1,500 RPM FUEL LIQUIFIED NATURAL GAS (LNG) OR NATURAL GAS (NG) |
| GENERATORS | LEROY SOMER LSA 53 VL80/4P
50 HZ OPERATION 1,935 KVA / 1,500 RPM COS PHI 0.8 / 10,000 V / 50 HZ 60 HZ OPERATION 1,931 KVA / 1,800 RPM COS PHI 0.8 / 11,000 V / 60 HZ |
| CONTAINERS ON DECK | LNG 2 X 40′ CONTAINER, ABT. 2 X 15 T LNG
EQUIPMENT FOR GAS PROCESSING UNIT, TRANSMISSION STATION, CONTROL ROOM AND DIESEL GENERATOR SET ARRANGED IN FOUR (4) INDIVIDUAL DECK CONTAINERS. |
THIS SYSTEM CAN TAKE HAS POTENTIAL USES FOR BOTH MARINE AND CONSTRUCTION SITES OR HARBORS AND ALLOWS FOR PROMPT ASSISTANCE TO LOCAL POWER GRIDS UNDER STRAIN WORLDWIDE.
WOG / SUBJECT TO AVAILABILITY
FURTHER DETAILS TO NAMED INTEREST ONLY
