Description

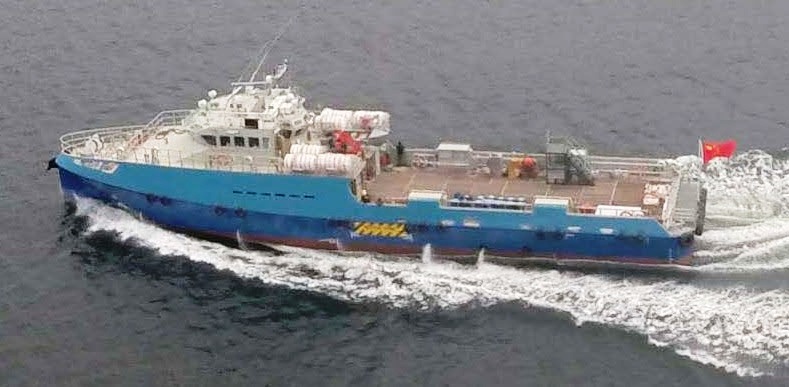

40M FAST CREWBOAT – 2 UNITS

GENERAL

VESSEL TYPE:         UTILITY CREW-BOAT

CLASSIFICATION:   ABS

YEAR OF BUILT:   2022 CHINA BUILT, NEW, DONE SEA TRIAL & READY

HULL MATERIAL:  ALUMINIUM

HULL FORM:          MONO-HULL

DIMENSION

LENGTH OVERALL:  40.27M

BEAM:                    8.20M

DEPTH:                  3.65M

LOADED DRAFT:     2.00M

DECK SPACE:         115.00 M²

GRT / NRT:            292 / 88 T

CAPACITY

FUEL OIL:            105000 LITERS

FRESH WATER:     36000 LITERS

DEADWEIGHT:      170 MT

DECK LOADING:  85 MT

ACCOMMODATION

CREW                     10 PAX.

PASSENGER:           100 PAX.

CREW CABIN:          3 X 2 MEN & 1 X 4 MEN

PASSENGER SEATS: 100 NOS.

GALLEY:                  1

MESS ROOM:           1

AIR COND.              FITTED

PERFORMANCE

SERVICE SPEED:   25.0 KNOTS @ 85% MCR AT 50 MT DWT

LADEN SPEED:      18.0 KNOTS @ 85% MCR AT FULL LOAD

PROPULSION

MAIN ENGINE:    4 X CUMMINS KTA38-M2 @1350 BHP

GEARBOX:          4

PROPELLER:        4 X FIXED PITCH PROPELLERS

BOW THRUSTER: 1 X 90 KW

INSPECTION: CHINA

WOG / SUBJECT TO AVAILABILITY

FURTHER DETAILS TO NAMED INTEREST ONLY
