Description

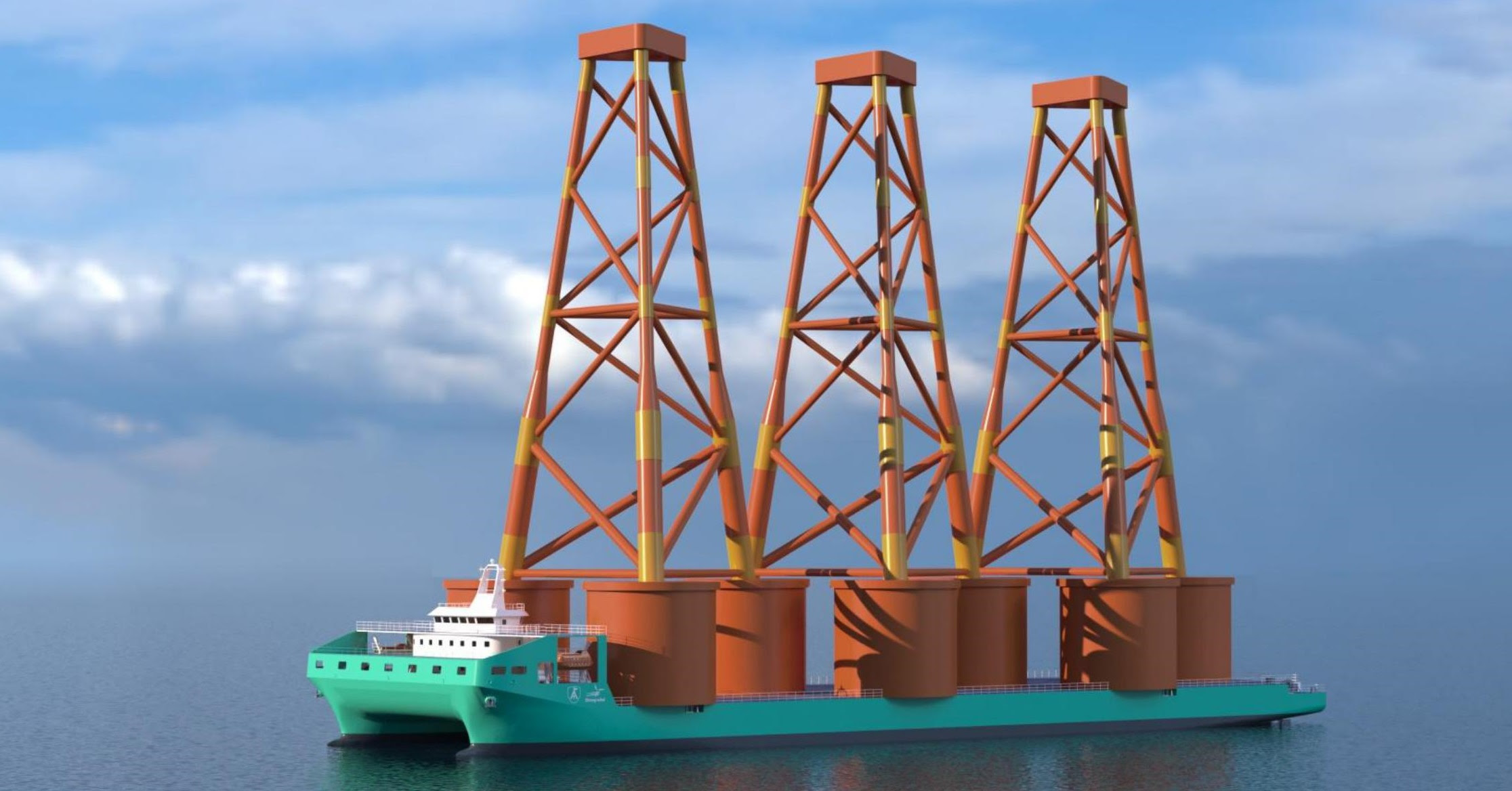

140M TWIN HULL DECK CARGO CARRIER
LENGTH OA, MAX 139.80 M
BREADTH 41.00 M
DEPTH 9.50 M
DESIGN DRAFT 5.00 M
SCANTLING DRAFT 6.95 M
GROSS TONNAGE ABT. 10,200 T
NET TONNAGE ABT. 3,060 T
DECK SPACE: 5,000 M2
DECK LOAD 15 T/M2
DEADWEIGHT AT DESIGN DRAFT 8000 T
DEADWEIGHT AT SCANTLING DRAFT 14000 T
SERVICE SPEED
DESIGN LOAD (D=5.00M,CSR WITH 10% S.M.) 12.00 KNOTS
FULL LOAD (D=6.95M,CSR WITH 10% S.M.) 11.50 KNOTS
ENDURANCE: 8000 NM
POWER DEVICE
FIRST SIDE PUSH 1500 KW @ 2 SETS
MAIN ENGINE 2500 KW 2 SETS
DIESEL GENERATOR 380 KW @ 3 SETS
TANK CAPACITY
HEAVY FUEL OIL 800 M3
DIESEL OIL 250 M3
LUB. OIL 20 M3
FRESH WATER 200 M3
BALLAST WATER 15,000 M3
WASH WATER HOLDING TANK 120 M3
WASHED WATER COLLECT TANK 120 M3
CLASSIFICATION NOTATION CCS
★ CSA DECK CARGO SHIP/ BRIDGE CRANE AND HEAVY EQUIPMENT CARRIER；
PSPC(B) ; ICE CLASS B; IN-WATER SURVEY
★ CSM AUT-0; G-ECO(BWM(T)) ; DP-2
CAPACITY OF LOADING 3 SETS OF 2,000 TON JACKET AT THE SAME TIME, OR HAS THE
HORIZONTAL ROLLING AND TRANSPORTATION OF 6,000 TON OFFSHORE BOOSTER STATION
DELIVERY EAST CHINA JUNE 2023.
EQUIPMENT SUPPLIERS ALL CHINESE MAKERS
WOG / SUBJECT TO AVAILABILITY
FURTHER DETAILS TO NAMED INTEREST ONLY
