Description
120FT WATER PRODUCTION BARGE
PRODUCTION CAPACITY
READY FOR IMMEDIATE DEPLOYMENT
THE 2 DESALINATION SYSTEMS ONBOARD ARE CAPABLE OF PRODUCING
A DAILY MAXIMUM OF 300000 GALLONS OF FILTERED
DESALINATED AND DRINKABLE WATER FROM SEAWATER
DIMENSIONS
LENGTH: 120FT (36.6M)
BEAM: 33FT (10.1M)
DEPTH: 10½FT (3.2M)
DISPLACEMENT: 505 TONS (513 TONNES)
EQUIPMENT INCLUDED
2 BANKS REVERSE OSMOSIS WATER PURIFICATION UNITS
ONBOARD CHLORINE MANUFACTURING UNIT
2 CATERPILLAR 3406-ENGINED HIGH PRESSURE WATER-PUMPS
2 CATERPILLAR 3406 BACK-UP ENGINES
2 HIGH-PRESSURE BACK-UP PUMPS
2 CATERPILLAR 3306 155KW MARINE GENERATORS
20KW CATERPILLAR MARINE HARBOUR GENERATOR
4 HYDRAULIC ANCHOR WINCHES AND ANCHORS
45T/M HYDRAULIC CRANE 2 ELECTRIC DELIVERY PUMPS
2,500FT (762M) ELECTRIC HOSE REEL WITH 6” (152.4MM) DELIVERY HOSE
ANCHORING EQUIPMENT
QTY 2 PORT SIDE
QTY 2 STB SIDE
RATED 8000 LBS
WIRE ROPE 600 FT
ANCHORS 4
TYPE: 1000LBS STANDARD DANFORTH
BOW CRANE
MANUFACTURER GRU IDRAULICHE (MORGAN CRANE COMP)
TYPE: SINGLE ARM HYDRAULIC ARTICULATING
41895 LBS 6FT. 7INCH
2,425 LBS 30 FT.
RAW WATER PUMPS
QTY: 2
TYPE: CENTRIFUGAL DIRECT COUPLING
CARTRIDGE FILTER ASSY
QTY: 2
CAPACITY: 12 FILTERS
MULTIMEDIA FILTERS
QTY 6
REVERSE OSMOSIS BLOCK X 2
QTY: BLOCK OF 16 TUBES
EACH TUBE: 5 REVERSES OSMOSIS MEMBRANE ELEMENT
CHLORINATION UNIT
QTY: 1 UNIT
DISCHARGE PUMPS
QTY: 2
TYPE: 421-8B
RPM: 1750
GPM: 260
SHORE DISCHARGE HYDRAULIC HOSE REEL
MATERIAL COFLEXIP
LENGTH 2500 FEET
OVERHEAD WORK ELECTRIC CRANE
MAKE SPANMASTER 5 TONS
VENTILATION
QTY 6 EXTRACTORS
QTY 2 BLOWERS
AIR COMPRESSOR
BEDFORD INDIANA NATLBD 31823
WELDING SET
LINCOLN
WORKSHOP
QTY 1 PRESS FAMCO
QTY 1 PILLAR DRILL ROCKWELL
QTY 1 GRINDING WHEEL BALDOR
QTY 1 VICE
QTY 1 WORK BENCH
ACCOMMODATION
BUNK BEDS QTY 3 SLEEPS 9
FRIDGE FREEZER QTY 1
WASHING MACHINES QTY 2
HIGH PRESSURE PUMP
TYPE ROTO-JET V BELT DEVEN
RATING 350 GPM(1325(L/MIN) AT 805 PSI (5550 KPA)
HP/RPM: 260 BHP/4380 RPM
MAIN RO PUMPS 1
POWER RATED 325 HP @2100 RPM/ 250 HP/1800 RPM
ENGINE MODEL 3406 DI
SERIAL N0: 6TB02014
ARRANGEMENT N0. 4W 841
TOTAL HRS 841

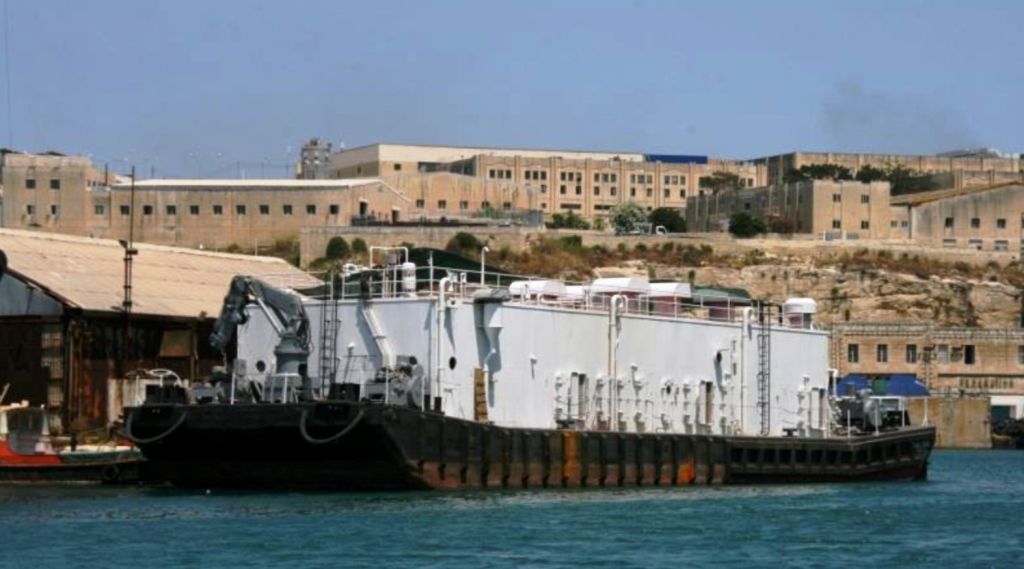

DATA FOR WATER PRODUCTION BARGE LOCATED IN MALTA. BARGE IS NOT SELF PROPELLED AND NEEDS A TUG BOAT FOR DELIVERY AT BUYERS EXPENSE.
THE BARGE WAS BUILT FOR THE US ARMY AND WAS KEPT AS A STANDBY REVERSE OSMOSIS SYSTEM IN CASE THE US ARMY REQUESTED HER OPERATION. THE BARGE WAS NEVER USED AND ALL EQUIPMENT WAS PRESERVED AND LABELLED WITH DATE. THE MEMBRANES THAT CAME WITH THE UNIT ARE ALL STILL IN PLASTIC AND STORED.
THIS BARGE HAS THE CAPABILITY OF PRODUCING APPROXIMATELY 300,000 GALLONS OF DRINKING WATER AS THE ROWPU SYSTEM HAS TWO IDENTICAL UNITS, ROWPU 1 AND ROWPU 2, THAT CAN BE RUN INDEPENDENTLY AND CAN PRODUCE 150,000 GALLONS OF POTABLE WATER PER 24 HR.
THESE UNITS WERE DESIGNED TO RUN PROCESS-FEED WATER (SEA SALT WATER OR BRACKISH WATER FROM RIVER OR LAKE) INTO TWO PRODUCTS; BRINE WATER OR DIRTY WATER THAT IS DUMPED OVERBOARD AND HIGHLY FILTERED NON-SALT WATER WHICH CAN ALSO BE STORED ON BOARD BARGE IN 4 TANKS THAT HOLD A TOTAL CAPACITY OF 15,000 GALS. THE BARGE COMPLIES WITH WHO GUIDELINES ACCORDING TO FIELD QUALITY OF WATER AND SALINITY AND WAS BUILT TO REJECT 98% SALINITY. AS DISCUSSED, THE BARGE IS BERTHED AT OUR BASE IN VALLETTA GRAND HARBOUR AND IS AVAILABLE FOR INSPECTION.
WATER PUMP AND GENERATOR ENGINES ARE 2 CATERPILLAR 3306 AND 2 CATERPILLAR 3406 TYPE.
HOW MANY LITRES OF LUBRICATING OIL SHOULD BE PUT ON THE BARGE?
– WE RECOMMEND APPROXIMATELY 1000 LITRES OF LUBE OIL.
WHAT TYPE OF REFERENCE OIL?
– 15W40
AND HOW OFTEN DO YOU HAVE TO CHANGE IT?
– FROM OUR EXPERIENCE EVERY 500 HOURS AN OIL CHANGE SHOULD TAKE PLACE.
THE SYSTEM HAS 2 GENERATORS AND 2 MAIN RO PUMPS WHICH OPERATE IN PARALLEL WITH THE FOLLOWING FUEL CONSUMPTION:
THE SHIP SERVICE GENERATORS CONSUME FUEL AT APPROX. 12.7 GALLONS PER HR. AT 100 PERCENT OF POWER AT 1800 RPM AND AS LOW AS 4.2 GALLONS PER HR. AT 25 PERCENT OF POWER AT THE SAME RPM
THE CATERPILLAR MAIN RO PUMPS CONSUME FUEL AT APPROX. 18 GALLONS PER HR. AT 325HP@ 2100 RPM AND 12.7 GALLONS PER HR. @ 250HP @1800 RPM CONTINUOUS.
WOG / SUBJECT TO AVAILABILITY
FURTHER DETAILS TO NAMED INTEREST ONLY
