Description

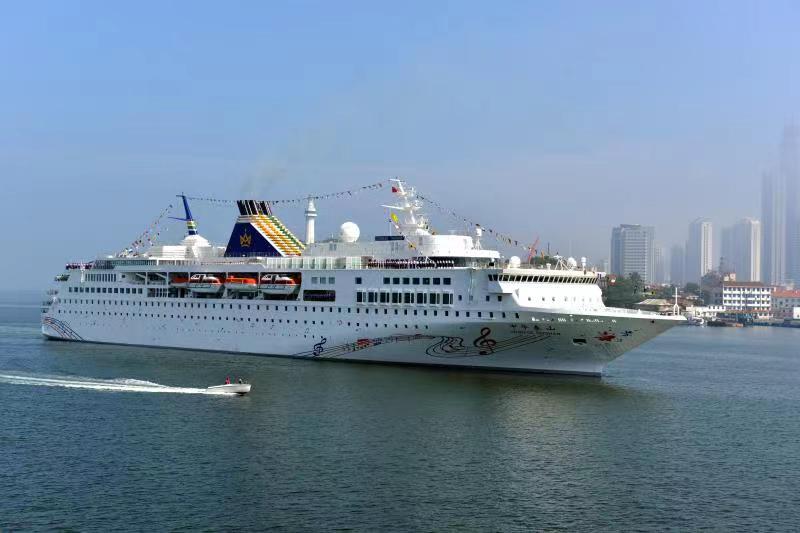

PASSENGER CRUISE SHIP

FLAG : LIBERIA

BUILDER : BLOHM+VOSS

KEEL LAYING : 08 JULY 1998

CLASSIFICATION :  CCS, PASSENGER/CRUISE

DELIVERY :  01 JUNE 2000

LIFE SAVING CAPACITY :  1280 PERSONS

MAX NUMBER OF PASSENGERS: 1000

MAX NUMBER OF CREW :  280

GROSS TONNAGE :  24427 T

NET TONNAGE : 10410 T

LENGTH OVERALL : 180.4 M

BREADTH  OVERALL : 25.5 M

DEPTH MOLDED  : 12.7 M

FREEBOARD:  2.65 M

AIR DRAFT  AT SUMMER LOAD LINE :  37 M

DISPLACEMENT AT SUMMER L.L. : 14833.70 TN .

DRAFT AT SUMMER LOAD LINE :  7.25 M

TOP MAST ABOVE THE KEEL :  42.8 M

LIGHTSHIP : 12465.9 T

LIGHT ON TOP MAST ABOVE THE KEEL : 44.25 M

MAX SPEED : 28 KNOTS

CRUISE  SPEED : 27 KNOTS

PROPULSION : NO:4 X 9450 KW TYPE WARTSILA 46 DIESEL ENGINE , FOUR STROKE SINGLE

ACTING , MODEL 9L46C,TOTAL POWER 37.800 KW

GENERATORS : NO:4 DIESEL GENERATORS EACH 2360 KW TYPE WARTSILA 26 MODEL 8L26+

EMERGENCY GENERATOR 725 KW

BOW THRUSTERS : KAMEWA,1 X 1510 KW /2013 HP

PROPELLERS : 2 VARIABLES PITCH

RUDDER : SINGLE RUDDER ,TYPE – SEMI-SPADE RUDDER

RUDDER AREA : -25,5 SQ.M

STABILIZERS : 2 FINES STABILIZING (SIMPLEX COMPACT S600)

ANCHORS : PORT  11 SHACKLES , STBD 11 SHACKLES

HEAVING UP SPEED : 10 M/1 MINUTE

CAPACITIES :

FUEL OIL : 1031.9 M³

DIESEL OIL ： 189.7 M³

FRESH WATER： (POTABLE)542.6 M³

FO CONSUMPTION  : AT MAX. SPEED 5.6 TN/H . AT ECONOMIC SPEED (15 KNTS) 3 TN/H.

AUTONOMY : 6 DAYS AT 28 KNOTS (4032 NAUTICAL MILES)

REVERSE OSMOSIS : 2 OSMOTEC PLANTS MODEL 80404-23/300

FRESH WATER PRODUCTION :

PURE WATER FLOW AT 25DEG=300 M³/DAY

AVAILABLE FOR HUMAN CONSUMPTION 284 M³/DAY

INCINERATOR: DEERBERG SYSTEM MOLTKESIRABE 61 D-26122 , CAPACITY 7 CBM/H.

TENDER LIFEBOATS:   NO: 4X150 PERSONS AS LIFE BOAT EACH &100 PERSONS AS TENDER BOAT EACH

LIFEBOATS:   NO: 2 LIFEBOATS CAPACITY OF 150 PERSONS EACH

LIFEBOATS/RESCUE BOATS:  NO: 2 WITH CAPACITY OF 32 PERSONS EACH AS LIFEBOAT

LIFE RAFTS :  NO: 28 WITH CAPACITY OF 25 PERSONS EACH

WOG / SUBJECT TO AVAILABILITY

FURTHER DETAILS TO NAMED INTEREST ONLY
